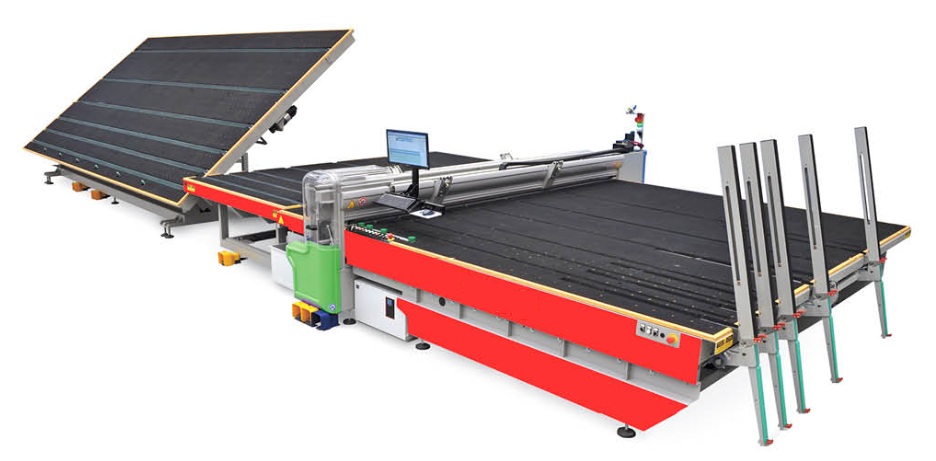

Laminated Glass Cutting Table

Airbag system to adjust the glass with hand. Reference wedges for side squaring. Side loading and discahrging arms. Double side cutting mechanism. Adjustable up and down tool for lubrication system. Sensitive automatic breaking for glass. Normal and laminated glass cutting option. Pvb cutting option, laser control cutting option. Cutting options can be programmed by optimization or can be input manually. Special design and manufacturing available. Glass lifting arms can be asembled on any side. Manual and automatic running system. Adjustable cutting pressure.

  • Cutting Speed 60 m/min.
  • Min. Cutting Thickness 3+a38pub+3 mm
  • Max. Cutting Thickness 6+6+4.56 pub
  • Width 4500 mm
  • Lenght 5800 mm
  • Min. Lenght of Cutting 250 mm
  • Max. Lenght of Cutting 4000 mm
  • Lubrication Tank 5 L
  • Weight 3500 kg
  • Air Consumption 50 L/min.
  • Paralellism 1 mm
  • Power 20 kW
  • High of work 945 mm
  • Diaponal Cutting Laser
