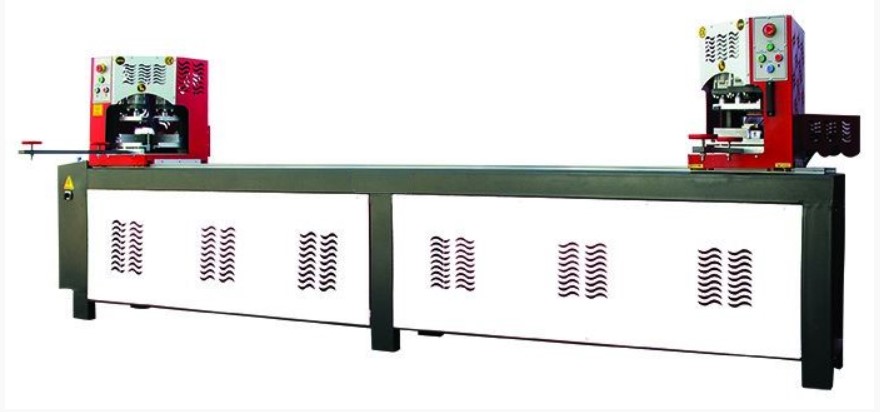

Tehplast Double Head Welding Machine

- Welding can be done in one operation at 2x90 degrees, controlled by full automatic PLC system. - Right head can be moved easily on ball beading system. - Pressure control for welding and profile clamping cylinders. - Welding operations on corners of PVC profiles with specific angels. - Adjustable welding temperature and clamping presurre for different PVC profiles - Adjusting the welding angels from 30 to 180 degrees - Synchronic welding on double corners of PVC profiles - Heating system controlled by full automatic digital system. - Pratically changing of the welding mold.

  • Voltage 380 V
  • Frequency 50 Hz
  • Total Power 2 x 1.5 kW
  • Air Pressure 6-8 Bar/min.
  • Air Consuption 1.5 L/min.
  • Max. Profile Height 140 mm
  • Max. Profile Width 130 mm
  • Lenght 4260 mm
  • Width 910 mm
  • Height 1430 mm
  • Weight 473 kg
  • Conveer Lenght 2 x 50 cm
  • Welding Temperature 0-340 C
  • Heating Time 0- sec.
  • Welding Time 0-99 sec.
